Intraocular scattering has been known for some time to be an important problem. Even for healthy eyes the scattering from a bright source can mask the presence of accompanying objects. Scattering inside the eye can be increased with age, with disease, e.g. cataracts or by cellular changes in the membrane behind the lens, or because of accident or surgery in the eye. Scattering can also be used to characterize the alignment of the rods and cones in the retina of the eye. These problems have been studied or diagnosed by measuring the backscattering of light which is designed to illuminate the eye. However, there has been little work on the effect of scattering on the image detected by the person in the presence of scattering, and in particular in the presence of two or more different sources of scattering, e.g. a patient with cataracts who has also been operated by LASIK. The purpose of the present project is to design a model of the human eye incorporating scattering effects from many different possible sources in different parts of the eye.

We have designed a numerical model based on published data for the human eye. This model contains 8 aspheric surfaces. We trace rays through these surfaces, using the standard aspheric raytrace equations, to calculate the imaging properties of the eye. The scattering from the cataract particles in the lens is calculated using the Mie theory, and the distribution of the particles is calculated using the random point process method. The random backscattering from the rods and cones in the retina is also taken into account in the model, using the equations developed by Marcos, Burns and He (J. Opt. Soc. Am., 15(8), (1998), p. 2012-2022). The model of the eye is shown below.

Surface number	Radius of Curvature (mm)	Asphericity Q	Refractive Index	Separation
1	7.83	-0.26
			1.333	6mm
2	7.46	-0.36
			1.401	50mm
3	7.09	-0.46
			1.378	500mm
4	6.718	-0.56
			1.357	5mm
5	6.34	-0.66
			1.336	3mm
6	11.0	-1.0
			1.42	3.6mm
7	-8.0	-0.5
			1.336	16mm
8	12.0	0.0

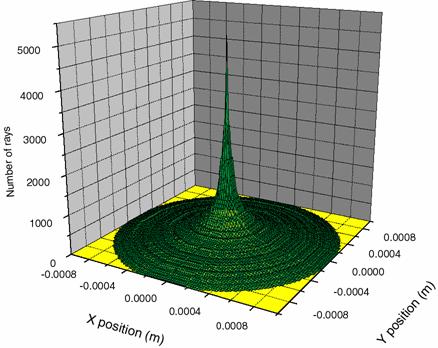

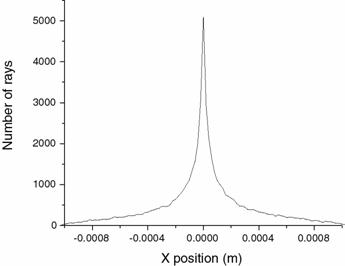

With no scattering in the eye, with this model, the image on the retina is as shown in the figures below.

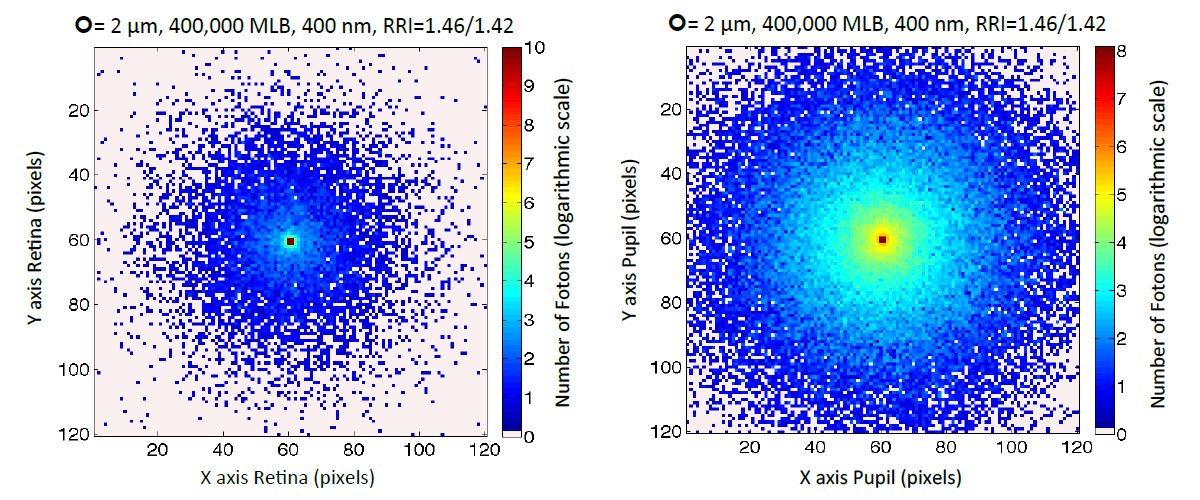

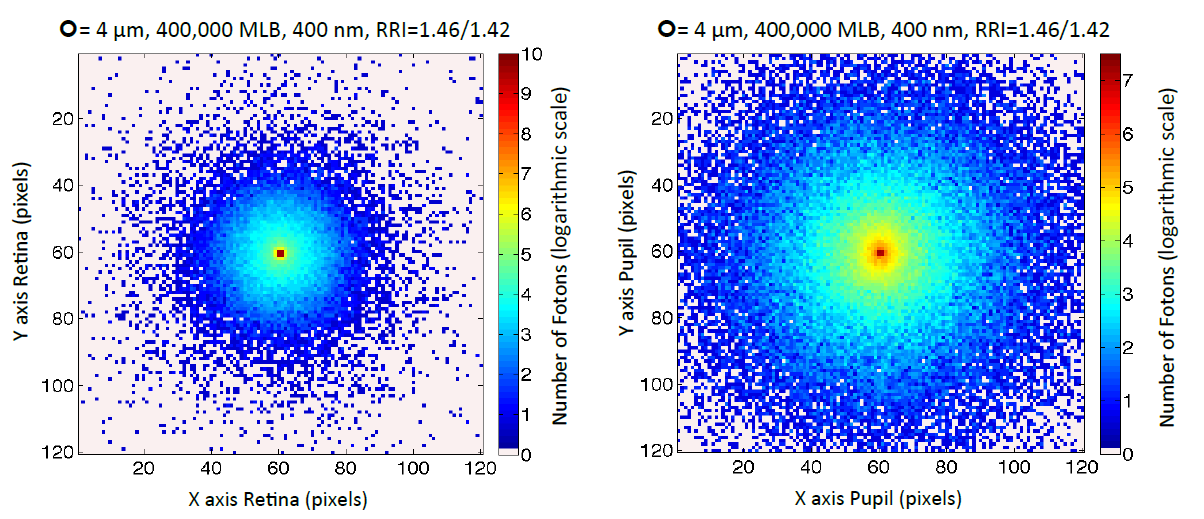

Taking into account the scattering from the cataract particles, we have 3 main variables: cataract particle size, number of cataract particles, and the illuminating wavelength.The first four graphs show scattered light patterns on the retina (left-hand graphs) and the returning photons scattered back out of the eye after travelling through the eye and being backscattered from the retina (right-hand graphs), for 400000 particles in the lens, an illuminating wavelength of 400nm and particles of 2 micron diameter (top) and 4 micron diameter (bottom). The relation of the particle refractive index to the background refractive index is given by the term RRI in the figures.

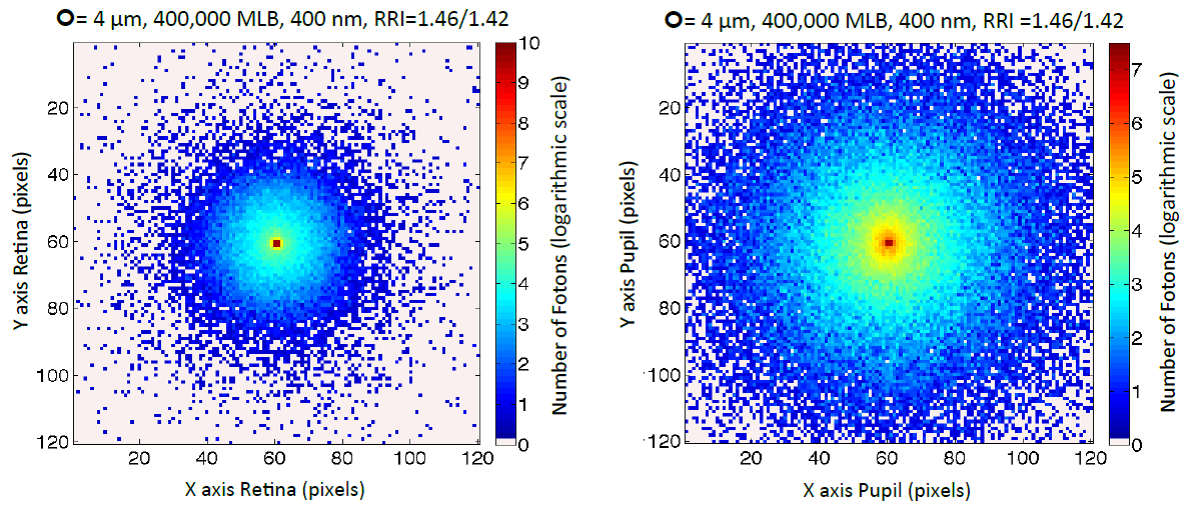

From these graphs it can be seen that the light that is backscattered from the eye after reflection on the retina does not change with a change in particle size. In fact in all the cases we have studied, the backscattered light only depends on the scattering from the retina, the effect of the cataract particles is very small. This is important because, in many cases, this is the light that a doctor will detect leaving the eye, and it does not depned on whether the patient has cataracts or not. However, the scattered light which reaches the retina, and which affects the vision of the patient, is affected by the particles, and there is more scattering for larger particles.

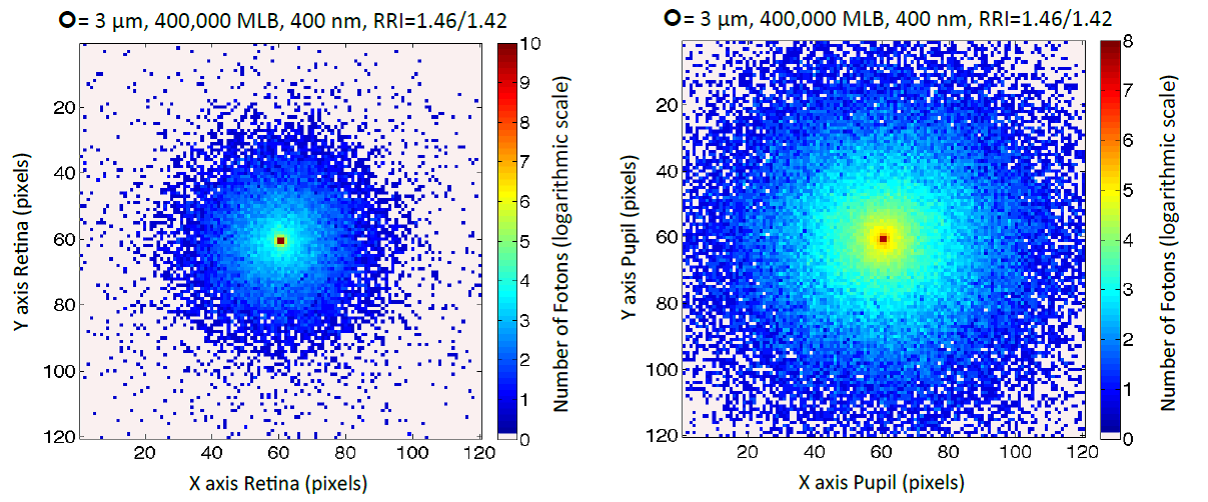

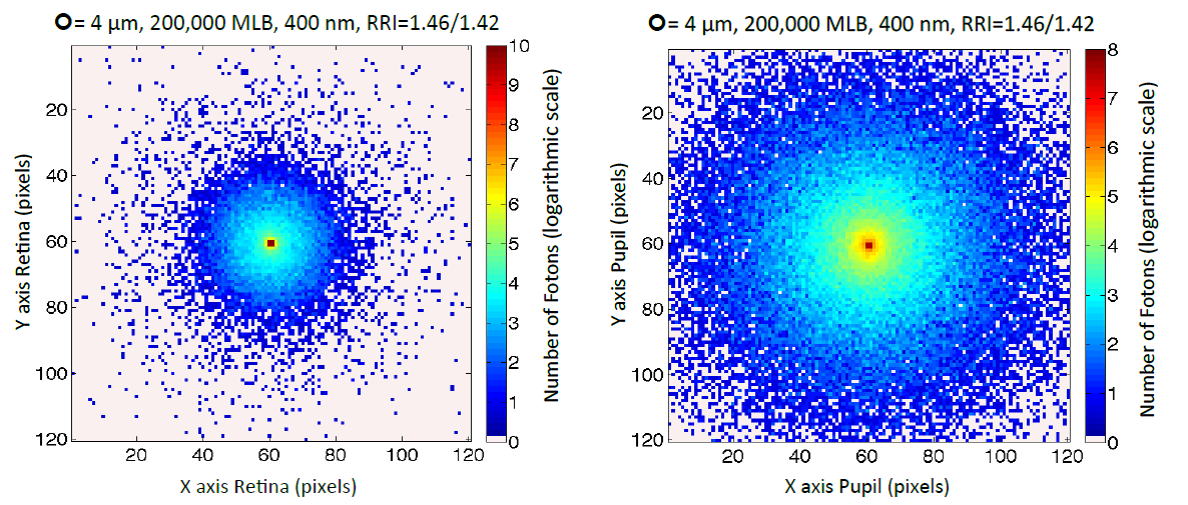

From these graphs, it can be seen that the number of particles in the lens has a relatively small effect on the scattered light distribution reaching the retina (the graphs on the left of the figure). Once again, the backscattered light is dominated by the scattering on the retina and is not affected by the cataract particles.

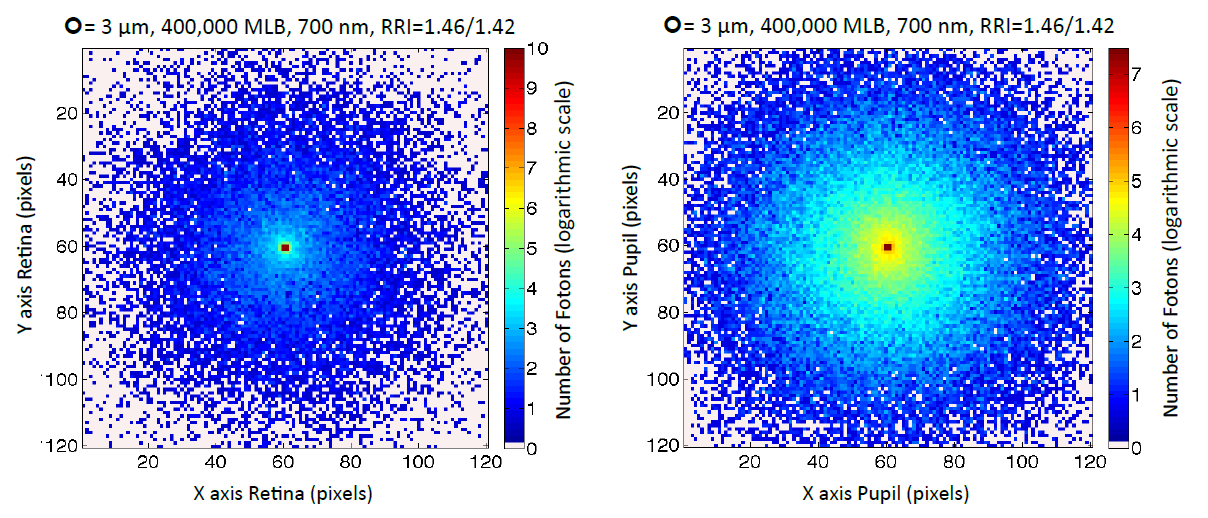

These graphs show that the scattered light distributions on the retina also depend on the illuminating wavelength. So, the scattered pattern on the retina, which determines the quality of vision of the patient, depends on particle size and illuminating wavelength, but not on the number of cataract particles inside the lens. We are trying to develop methods to use these variations to characterize the cataract particles using non-invasive optical methods.
